CONTAINER INFORMATION (OCEAN)

Standard 20′
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
19’4″ 7’8″ 7’10″ 7’8″ 7’6″ 1,172Cft 4,916Lbs 47,900Lbs
5.900m 2.350m 2.393m 2.342m 2.280m 33.2Cu.m 2,230Kgs 21,770Kgs

Standard 40′
39’5″ 7’8″ 7’10″ 7’8″ 7’6″ 2,390Cft 8,160Lbs 59,040Lbs
12.036m 2.350m 2.393m 2.342m 2.280m 67.7Cu.m 3,700Kgs 26,780Kgs





Upgraded 20′
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
19’4″ 7’7″ 7’10″ 7’6″ 7’6″ 1,150Cft 5,060Lbs 61,996Lbs
5.900m 2.311m 2.390m 2.286m 2.280m 33.63Cu.m 2,300Kgs 28,180Kgs

High Cube 40′
39’5″ 7’8″ 8’10″ 7’8″ 8’5″ 2,694Cft 8,750Lbs 58,450Lbs
12.036m 2.350m 2.697m 2.338m 2.585m 76.3Cu.m 3,970Kgs 26,510Kgs

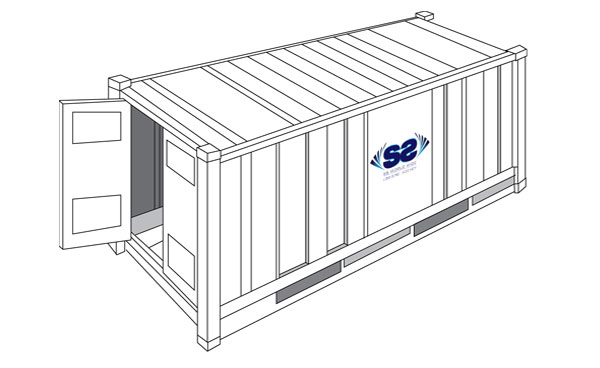

Reefer 20′
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
17’8″ 7’5″ 7’5″ 7’5″ 7’3″ 1,000Cft 7,040Lbs 45,760Lbs
5.425m 2.275m 2.260m 2.258m 2.216m 28.3Cu.m 3,200Kgs 20,800Kgs

Reefer 40′
37’8″ 7’5″ 7’2″ 7’5″ 7’0″ 2,040Cft 10,780Lbs 56,276Lbs
11.493m 2.270m 2.197m 2.282m 2.155m 57.8Cu.m 4,900Kgs 25,580Kgs

Reefer High Cube 40′
37’11″ 7’6″ 8’2″ 7’6″ 8’0″ 2,344Cft 9,900Lbs 57,561Lbs
11.557m 2.294m 2.500m 2.294m 2.440m 66.6Cu.m 4,500Kgs 25,980Kgs

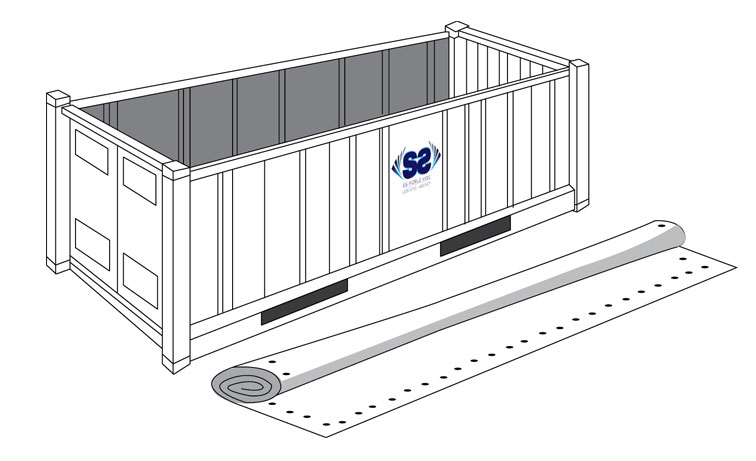

Open Top 20’ (Upgraded also available)
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
19’4″ 7’7″ 7’8″ 7’6″ 7’2″ 1,136Cft 5,280Lbs 47,620Lbs
5.894m 2.311m 2.354m 2.286m 2.184m 32.23Cu.m 2,400Kgs 21,600Kgs

Open Top 40’ (Upgraded also available)
39’5″ 7’8″ 7’8″ 7’8″ 7’5″ 2,350Cft 8,490Lbs 58,710Lbs
12.028m 2.350m 2.345m 2.341m 2.274m 65.5Cu.m 3,850Kgs 26,630Kgs

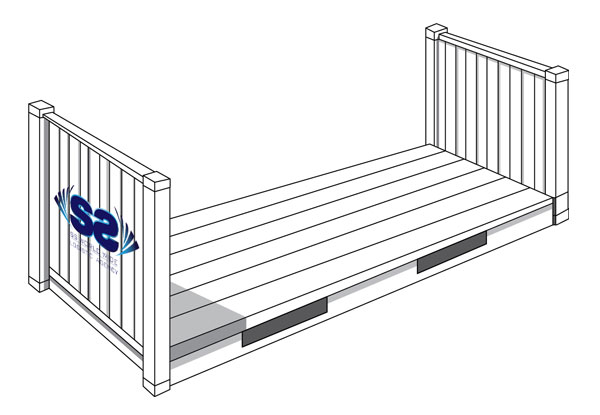

Flat Rack 20’ (Upgraded also available)
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
18’5″ 7’3″ 7’4″ - - - 5,578Lbs 47,333Lbs
5.620m 2.200m 2.233m - - - 2,530Kgs 21,470Kgs

Flat Rack 40’
39’7″ 6’10″ 6’5″ - - - 12,081Lbs 85,800Lbs
12.080m 2.438m 2.103m - - - 5,480Kgs 39,000Kgs





Flat Rack 20’ (Upgraded also available)
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
18’6″ 7’3″ 7’4″ - - - 6,061Lbs 61,117Lbs
5.618m 2.208m 2.233m - - - 2,750Kgs 27,730Kgs

Flat Rack 40’
39’7″ 6’10″ 6’5″ - - - 12,787Lbs 85,800Lbs
12.080m 2.126m 2.043m - - - 5,800Kgs 39,000Kgs

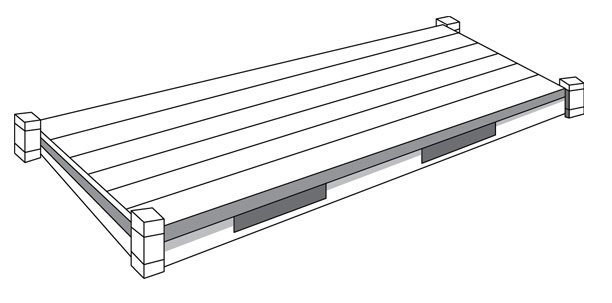

Platform 20’ (Upgraded also available)
Inside
Length		 Inside
Width		 Inside
Height		 Door
Width		 Door
Height		 Capacity Tare Weight Maxi Cargo
19’11″ 8’0″ 7’4″ - - - 6,061Lbs 52,896Lbs
6.058m 2.438m 2.233m - - - 2,750Kgs 24,000Kgs

Platform 40’
40’0″ 8’0″ 6’5″ - - - 12,783Lbs 86,397Lbs
12.18m 2.40m 1.95m - - - 5,800Kgs 39,200Kgs
