CONTAINER INFORMATION (AIR)

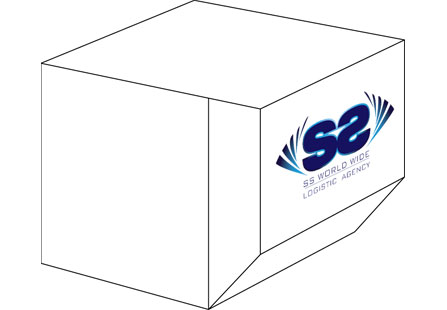

A320/A321-Container. Code: AKH
Loaded in: A320, A321.
| Base Dimensions: | 153 x 156 cm |
| 60.4 x 61.5 in | |
| Height: | 114 cm |
| Volume: | 3.5 m3 |
| Max. Internal | |
| Dimensions: | 144 x 146 x 111 cm |
| Tare Weight: | 80 kg |
| Max Load: | 1,134 kg |

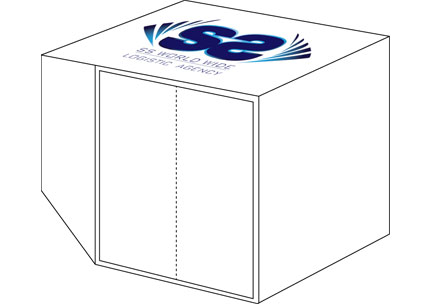

LD3-Container. Code: AVA*, AKW**
Loaded in: A310-300, A300-600, A340-200, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
* With profiles for garment transport.
** Lockable for valuable cargo.
| Base Dimensions: | 153 x 156 cm |
| 60.4 x 61.5 in | |
| Height: | 163 cm |
| Volume: | 4 m3 |
| Max. Internal | |
| Dimensions: | 142 x 195 x 160 cm |
| Tare Weight: | 80 kg |
| Max Load: | 1,588 kg |
LD3-Container. Code: RKN
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 153 x 156 cm |
| 60.4 x 61.5 in | |
| Height: | 163 cm |
| Volume: | 2.8 m3 |
| Max. Internal | |
| Dimensions: | 139 x 188 x 137 cm |
| Tare Weight: | 225 kg |
| Max Load: | 1,588 kg |

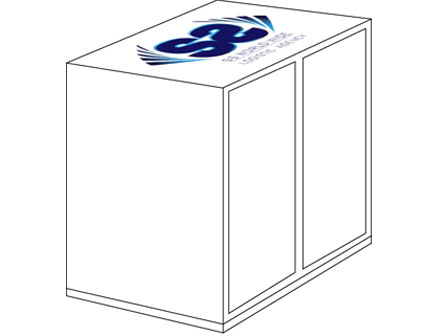

XYX-Box (Hanging Garment). Code: XYX
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 153 x 117 cm |
| 60.4 x 46 in | |
| Height: | 160cm |
| Volume: | 2.6 m3 |
| Max. Internal | |
| Dimensions: | 150 x 115 x 152 cm |
| Tare Weight: | 72 kg |
| Max Load: | 500 kg |
LD9-Refrigerating-Container. Code: RAP
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 224 x 318 cm |
| 88 x 125 in | |
| Height: | 162 cm |
| Volume: | 8.3 m3 |
| Max. Internal | |
| Dimensions: | 210 x 303 x 145 cm |
| Tare Weight: | 445 kg |
| Max Load: | 5,588 kg |
QC-Container. Code: AAN
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, B737-300 QC, MD 11 F.
| Base Dimensions: | 224 x 318 cm |
| 88 x 125 in | |
| Height: | 156 cm |
| Volume: | 9 m3 |
| Max. Internal | |
| Dimensions: | 208 x 298 x 148 cm |
| Tare Weight: | 243 kg |
| Max Load: | 3,000 kg |
AMF-Container. Code: AMF
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 314 x 244 cm |
| 96 x 125 in | |
| Height: | 161 cm |
| Volume: | 13 m3 |
| Max. Internal | |
| Dimensions: | 234 x 398 x 146 cm |
| Tare Weight: | 375 kg |
| Max Load: | 5,604 kg |
AMP-Container. Code: AMP
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 244 x 318 cm |
| 96 x 125 in | |
| Height: | 160 cm |
| Volume: | 10 m3 |
| Max. Internal | |
| Dimensions: | 228 x 298 x 153 cm |
| Tare Weight: | 292 kg |
| Max Load: | 6,804 kg |
Coolbox. Code: MYX
Loaded in: A310-300, A300-600, A340-300, B747-200, B747-400, B747-200 SF, B747-200 F, MD 11 F.
| Base Dimensions: | 100 x 140 cm |
| Height: | 75 cm |
| Volume: | 0.37 m3 |
| Max. Internal | |
| Dimensions: | 82 x 122 x 49 cm |
| Tare Weight: | 100 kg |
| Max Load: | 310 kg |

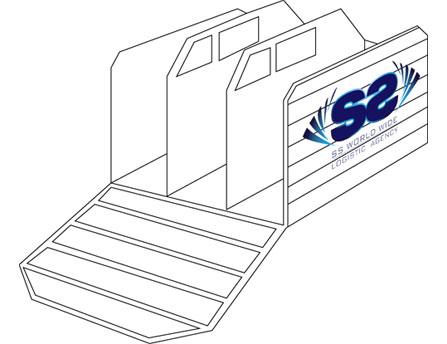

Triple horse-Container. Code: HAJ
Loaded in: B747-200 SF, B747-200 F.
| Base Dimensions: | 88 x 125 cm |
| or 96 x 125 in-Pallet | |
| Height: | 185 cm |
| Max. Internal | |
| Dimensions: | 228 x 208 x 185 cm |
| Tare Weight: | 420 kg |
| Max Load: | 3 horses |
Triple horse-Container. Code: HYJ
Loaded in: B747-200 SF, B747-200 F.
| Base Dimensions: | 88 x 125 cm |
| or 96 x 125 in-Pallet | |
| Height: | 208 cm |
| Max. Internal | |
| Dimensions: | 208 x 228 x 200 cm |
| Tare Weight: | 510 kg |
| Max Load: | 3 horses |
